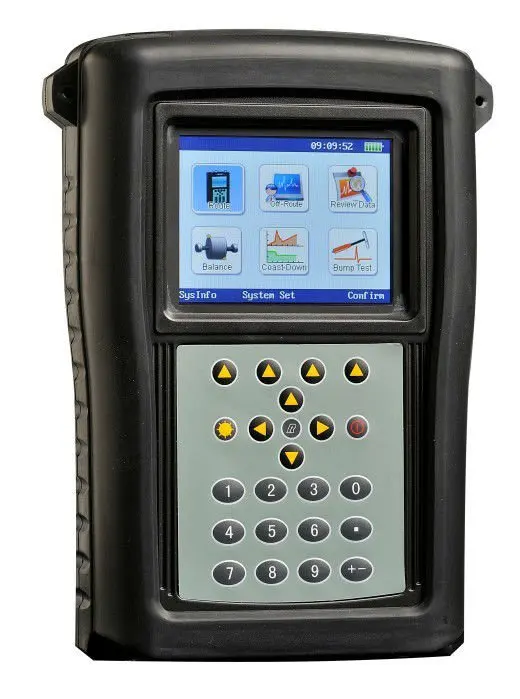

RH802 Dual channel vibration analyzer technical parameter

Features

l 3.5 inches TFT large LCD screen, simple flow chart, compact and light weight, more convenient operation.

l 1GB large storage capacity, can meet high-capacity data collection requirement.

l Wide analysis frequency (0~40KHz), high spectrum resolution ratio, can meet the requirement for precise and complex equipment (high-speed gear) analysis.

l Very flexible parameters configuration including high and low band pass filter, sampling length and sampling frequency etc. Can meet the requirement of data acquisition for various equipments.

l Route or off route data acquisition are allowable, off route data acquired can be saved by sequence number or by measuring point number.

l Comprehensive functions:

  • Acquiring vibration data like velocity, acceleration, displacement:
  • Acquiring RPM;
  • Self-testing function of system acquistion;
  • Acquiring single or dual channel waveform, spectrum, overall value and long waveform;
  • Acquiring XPM, cross-power spectrum, phase difference spectrum, and acquiring the phase difference between two measuring points directly.
  • Long time domain waveform, equivalent to digital tape recorder, can capture the machine’s transient process data;
  • Coast up/down testing analysis, to track the vibration varies in starting and stopping.
  • On site dynamic balancing, users can complete dynamic balance test comply with the tips;
  • Overall value, capture the entire changing process for equipment transient vibration, convenient to analyze the changing connecting between machine vibration and technical parameter on site, the interval time can be set as needed.

Main technical parameters

Items

Specification

Analog input

Channels

Channel 1:vibration(ICP accelerometer),Voltage(±21V AC or DC)

Channel 2: vibration(ICP accelerometer),Voltage(±21V AC or DC), tacho channel

Transducer

Accelerometer, Velocity, Displacement, voltage transducer

Signal range

±21V

A/D conversion

24 bit

Analog measurement

Integration

Once, twice integration

Maximal analysis frequency

40kHz(dual channel Maximal: 20kHz)

Sampling frequency

256Hz – 102.4kHz

Dynamic signal range

96dB

Precision

1%( 0.1dB)

Signal processing

Configuration

Sampling frequency, low band pass filter, Sampling length,users can set any value as needed.

Lines

400, 800, 1600, 3200, 6400, 12800

Time domain Sampling

1024, 2048, 4096, 8192, 16384, 32768

Window function type

Hanning, Rectangle window

Averaging

Linearity, peak hold

Averages

1,2,4,8,16,32,64,128

Analysis

Long time domain waveform

Maximal waveform is 10M, maximal analysis frequency of Dual-channel is 10KHz, maximal analysis frequency of single channel is 20K.

Overall value

Minimum interval: 0.1 sec

XPM measurement

view XPM and phase difference spectrum simultaneously

Dynamic balance

On site 1 or 2 plane dynamic balance by Influence coefficient method

Coast up/down testing

Equal time intervals, Equal RPM intervals

Basic index

LCD

True color LCD, 320×240pixles, contrast adjustable

Keys

22 keys

Communication

USB, 900KB/s

Storage capacity

1G

iButton

DS1990A

Communication

USB 2.0

Battery

Rechargeable Li-ion battery, charging time around 4 hours; working Time (Continuous) >10 Hours; two channel working time >8 Hours

Temperature

(-10~50)°C

Humidity

95% RH without condensate

Protection grade

IP65

Dimension

190 X110 X50mm

Weight

660g
